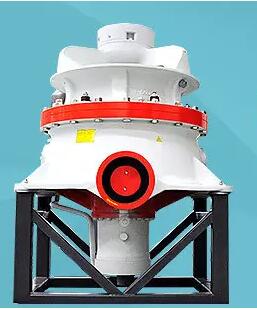

HST Single Cylinder Hydraulic Cone Crusher simple and smooth appearance, small size, light weight, production capacity has increased significantly. Durable, simple operation, easy maintenance, hydraulic adjustment and secure, and reliable automatic control, low wear, the biggest advantage of lower production costs at the same time can produce excellent grain type (low flakiness content) stone products.

Design Concept
Occurs between the material and the material layer compression crushing, high crushing efficiency, liner wear slow, low steel consumption, the product was a cube, suitable for building sand operations.
Innovative Design
1. Floating spindle
Nesting population adjustment extremely easy, automatic control system to dynamically adjust the realization of load, automatic load settings, automatic discharge opening set, automatic multi port of discharge set, maximize the crushing effect, the flexible adjustment of product distribution, saving users Cost of production.
2. Steep cone moving cone
Broken cone angle 53 ° -56 °, deep crushing chamber, in the case of high throughput capacity, the number of broken, good laminating effect. Due to steep crushing cone, less affected by the moisture content of the ore production.
3. Constant Yield liner
Crushing chamber liner (broken wall, rolling acetabular wall) and put into use in early and late production of small changes can increase output by 15%, lining life increased by 6%.
4. Full automatic control system
Of the discharge opening, electrical power, with the crusher pressure to achieve dynamic load regulation, and can display real-time operating parameters, to achieve unattended operation, Pai mine mouth automatically detect and adjust so that the maximum power play equipment, and reduce human error caused unnecessary losses.
5. Star jib arrangement
Star Boom Boom Frame arrangement with two more favorable compared to the stress state of the material requirements low, robust and reliable.

6. High pressure hydraulic systems

High pressure hydraulic system designed to meet the needs of low pressure, a higher margin pressure, improve the reliability of the hydraulic system in the normal operation.
7. Imported air-cooled radiator
The use of imported air-cooled radiator, reliable operation, space-saving, easy to install, to avoid water leakage and other damage to the equipment extremely serious fault.

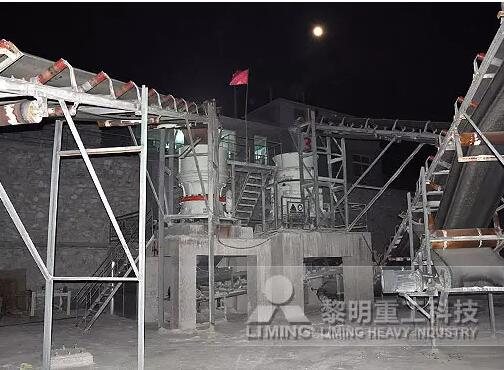

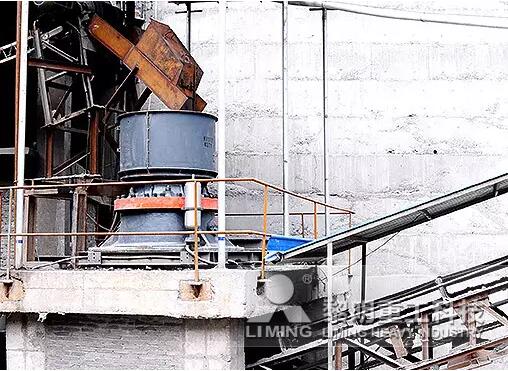

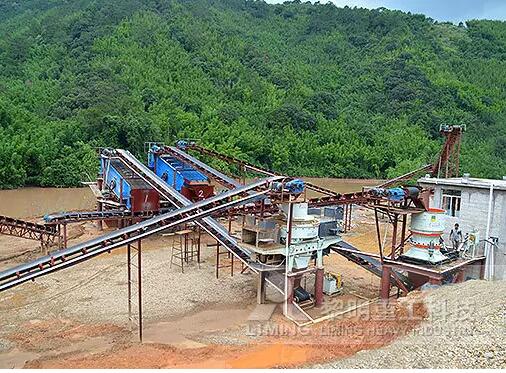

Live show

Henan, China iron ore processing project

Yield: 120-150t / h
Discharge size: 0-20mm
Device Configuration: PE600 × 900 jaw crusher, HST160H hydraulic cone crusher, YZS1860 shaker
live situation:
According to the higher iron ore hardness characteristics for customers to configure the entire production line, including PE600 × 900 jaw crusher, HST160H hydraulic cone crusher, YZS1860 shaker. Jaw crusher for primary crushing process to reduce wear and the subsequent follow-crushing pressure crusher, crushing stage high crushing efficiency of HST hydraulic cone crusher, refined grain shape to meet customer needs.
